Features
High isolation 3750 VRMS
Multiple CTR selection available
DC input with transistor output
Creepage distance ≥5mm
Operating temperature range - 55 °C to 110 °C
Green Package
Regulatory Approvals
UL - UL1577 (E364000)
VDE - EN60747-5-5(VDE0884-5)
CQC – GB4943.1, GB8898
IEC60065, IEC60950
Description

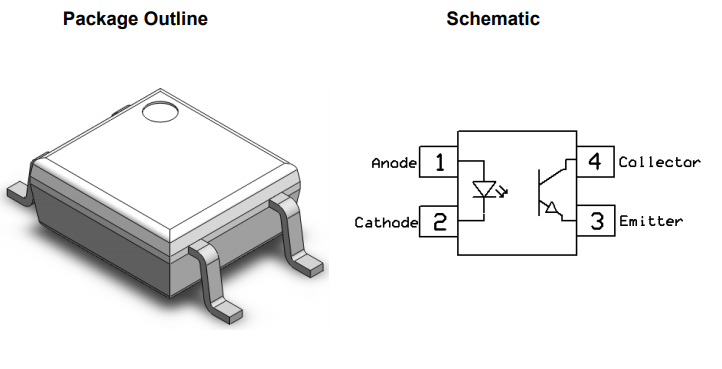

These series of general purpose optocoupler consists of a photo transistor optically coupled to a gallium arsenide Infrared-emitting diode in a 4-lead Mini-Flat package.
Applications
DC-DC Converters
Programmable controllers
Telecommunication equipment
Hybrid substrates that require high density mounting
北亿纤通专业研发生产并完美替换：EL357,EL357光藕,EL EL357,亿光EL357,EL亿光 EL357光藕.100%完美兼容EL亿光 EL357光藕.我们的产品海量交付给华为、中兴、国防、军工、航空、航天、兵器、舰船、雷达、电子、工业、核工业、核武器、军事、电力、铁路、医疗、交通、通信、电信、移动、联通、政府、国防科技等大专院校及科研院所
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
