概述:
FT-X2-HCPL3120 是一种 2.5A 输出电流栅极驱动光电耦合器, 可驱动大多数中功率 IGBT 和 MOSFET。在电机控制逆变器以及高性能电力系统中,其非常适用于快速切换驱动功率 IGBT 和 MOSFET。

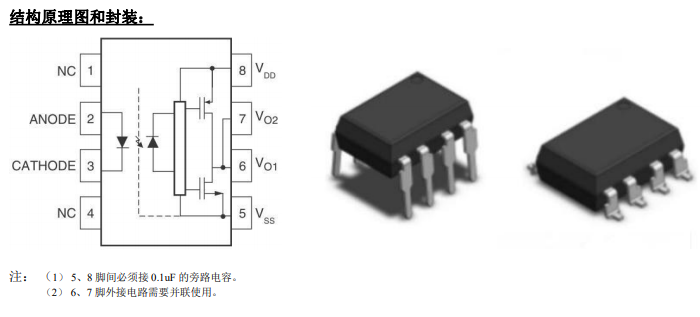

其包含一个镓铝砷化合物(AlGaAs)的发光二极管组成,通过红外光耦合到光敏集成电路,该集成电路具有用于推挽MOSFET 输出级的高速驱动器。
特性:
35kV/us 最小共模抑制;
2.5A 峰值输出电流驱动能力, 适用于最大1200V/120A 的 IGBT;
输出级采用 P-沟道 MOSFET,使输出电压振幅可接近电源端;
开关速度快
-延迟时间最大 400ns
-最大 100ns 的脉宽失真;
带滞后的欠压闭锁;
工作温度范围:-40℃ to 100℃;
RDS(ON)典型值仅 1Ω,功耗更小;
1414 峰值工作隔离电压(VIORM)
CQC 认证(NO:CQC20001268610)
应用:
工业逆变器
不间断电源
感应加热
IGBT 隔离/功率 MOSFET 栅极驱动
