DESCRIPTION
The PS2761-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.

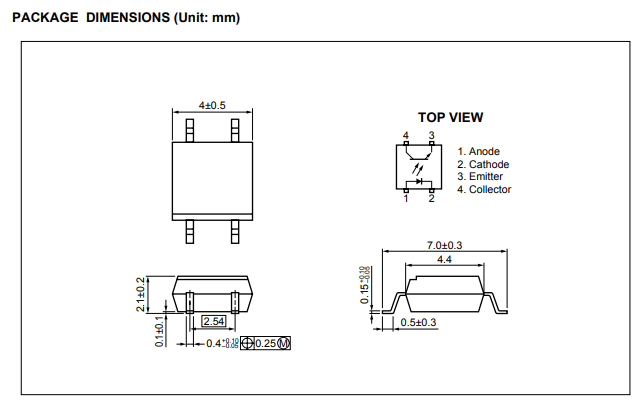

This package is mounted in a plastic SOP (Small Outline Package) for high density applications.
The package has shield effect to cut off ambient light.
FEATURES
• Isolation distance (0.4 mm MIN.)
• High isolation voltage (BV = 3 750 Vr.m.s.)
• SOP (Small Outline Package) type
• High-speed switching (tr = 4 µs TYP., tf = 5 µs TYP.)
• Ordering number of taping product: PS2761-1-F3, F4
• UL approved: File No. E72422 (S)
• BSI approved: No. 8436/8437
APPLICATIONS
• Hybrid IC
• Programmable logic controllers
• Power supply
