Power MOS FET Gate Drive
IGBT Gate Drive

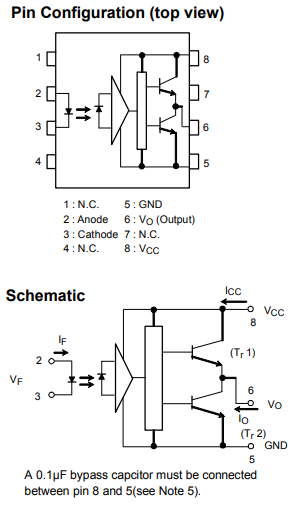

The TOSHIBA TLP251 consists of a GaAℓAs light emitting diode and a integrated photodetector.
This unit is 8-lead DIP package.
TLP251 is suitable for gate driving circuit of IGBT or power MOS FET.Especially TLP251 is capable of “direct” gate drive of lower power IGBTs.(~15A)
● Input threshold current: IF=5mA(max.)
● Supply current (ICC): 11mA(max.)
● Supply voltage (VCC): 10−35V
● Output current (IO): ±0.4A(max.)
● Switching time (tpLH / tpHL): 1μs(max.)
● Isolation voltage: 2500Vrms(min.)
● UL recognized: UL1577, file no.E67349
● Option(D4)
VDE Approved : DIN EN60747-5-2
Maximum Operating Insulation Voltage : 890VPK
Highest Permissible Over Voltage : 4000VPK
