Office Machine
Household Use Equipment
Solid State Relay
Switching Power Supply

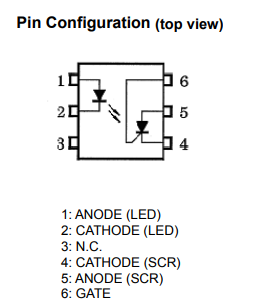

The TOSHIBA TLP548J consists of a photo−thyristor optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package.
• Peak off-state voltage: 600 V (min)
• Trigger LED current: 7 mA (max)
• On-state current: 150 mA (max)
• Isolation voltage: 2500 Vrms (min)
• UL recognized: UL1577, file no. E67349
