Description

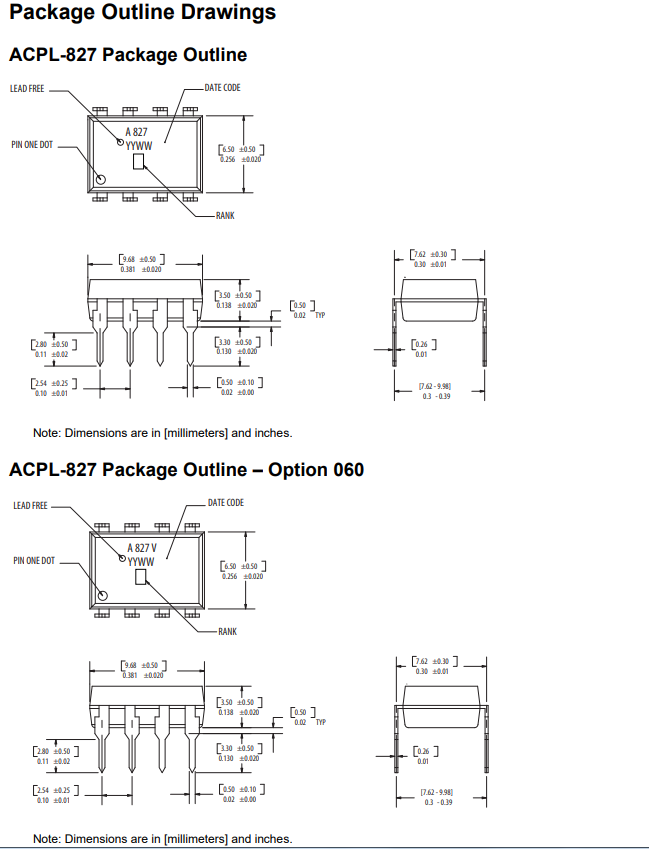

The ACPL-827 is a DC-input dual-channel, full-pitch phototransistor optocoupler that contains two light emitting diodes optically coupled to two separate transistors. It is packaged in an 8-pin DIP package.

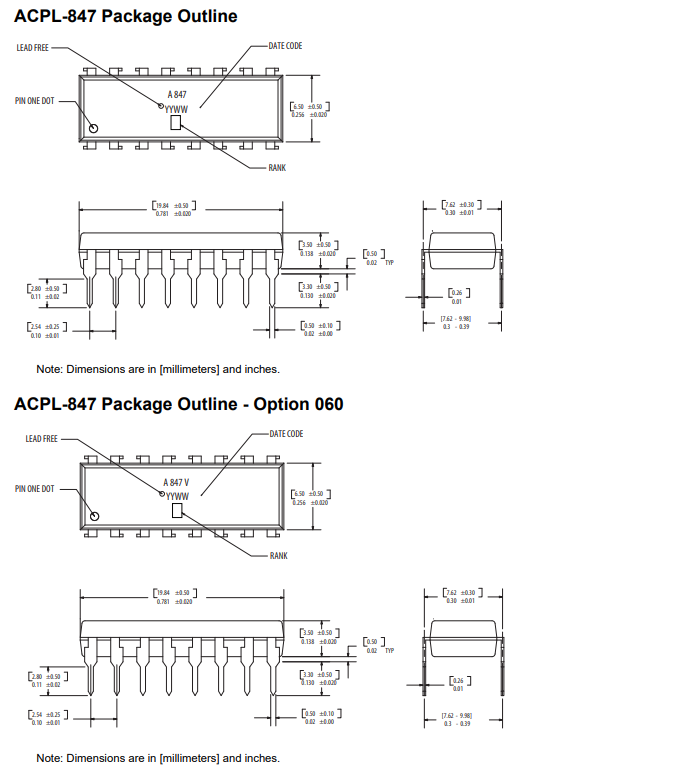

Likewise, the ACPL-847 is a DC-input quad-channel, fullpitch phototransistor optocoupler that contains four light emitting diodes optically coupled to four separate transistors. It is packaged in a 16-pin DIP package. Both optocouplers are available in a wide-lead spacing option and a lead bend SMD option with an input-output isolation voltage of 5000 Vrms. Response time, tr, is typically 4 μs and minimum CTR is 50% at input current of 5 mA.
Features
Current transfer ratio (CTR: min. 50% at IF = 5 mA, VCE = 5V)
High input-output isolation voltage (VISO = 5,000 Vrms)
Response time (tr: typ. 4 μs at VCE = 2V, IC = 2 mA, RL = 100Ω)
Compact dual-in-line package Safety and regulatory approvals – CSA – UL 1577

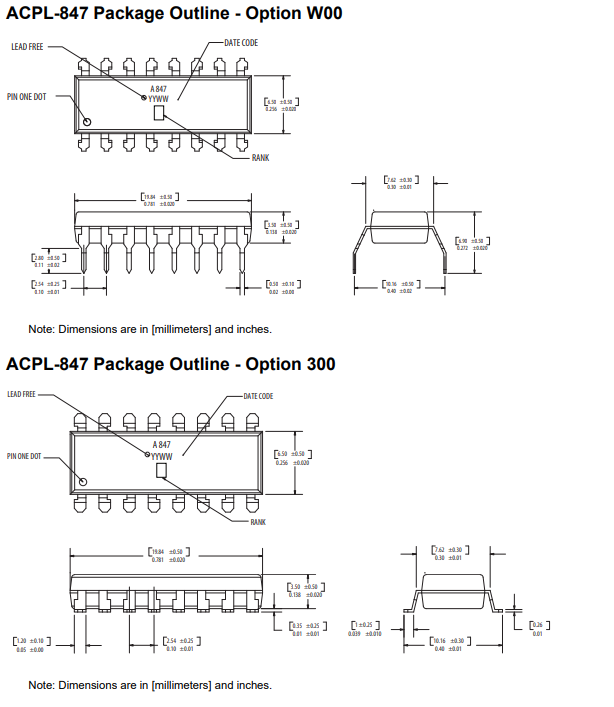

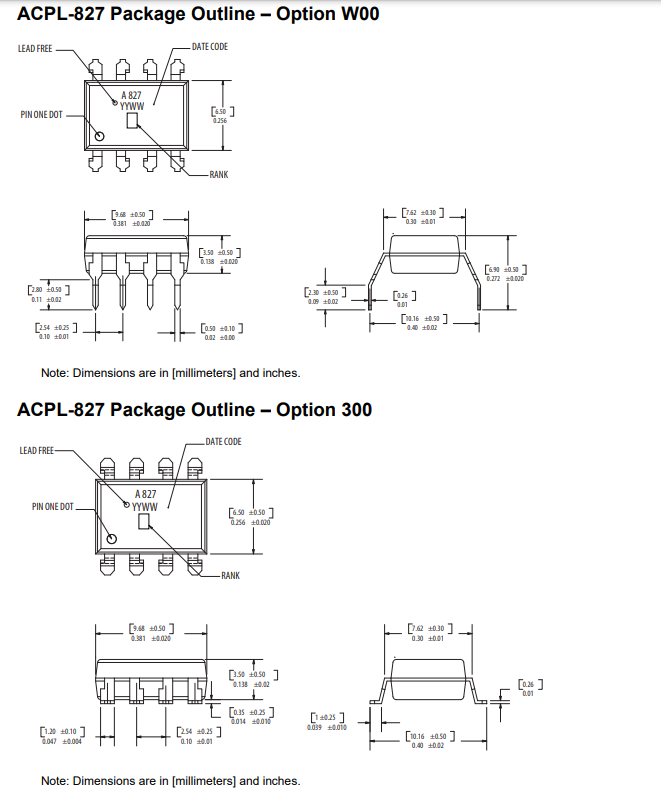

– IEC/EN/DIN EN 60747-5-2 Options available: – Leads with 0.4 in. (10.16 mm) spacing (W00)
– Lead bend for surface mounting (300)
– Tape and reel for SMD (500) – available only for ACPL-827
– IEC/EN/DIN EN 60747-5-2 approved (060)
– Lead free (000E)
Applications
I/O interface for programmable controllers, computers.
Sequence controllers.
System appliances, measuring instruments.
Signal transmission between circuits of different potentials and impedances.
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
