Description

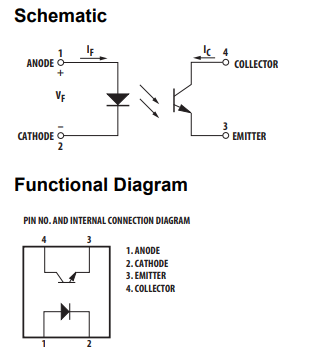

The Broadcom® HCPL-181 contains a light-emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin mini-flat SMD package with a 2.0-mm profile. The small dimension of this product allows significant space saving.
The package volume is 30% smaller than that of conventional DIP type. Input-output isolation voltage is 3750 Vrms. Response time, tr, is typically 4 µs and minimum CTR is 50% at input current of 5 mA.
Features
Current transfer ratio (CTR: minimum 50% at IF = 5 mA, VCE = 5V)
High input-output isolation voltage (Viso = 3750 Vrms)
High collector-emitter voltage (VCEO = 80V)
Response time (tr: typical, 4 µs at VCE = 2V, IC = 2 mA, RL = 100Ω)
Mini-flat package (2.0-mm profile) in tape and reel package
UL approved
CSA approved
IEC/EN/DIN EN 60747-5-2 approved
Options available:
– IEC/EN/DIN EN 60747-5-2 approvals (060)
Applications
I/O interfaces for computers
System appliances, measuring instruments
Signal transmission between circuits of different potentials and impedances
Feedback circuit in power supply
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
