Description

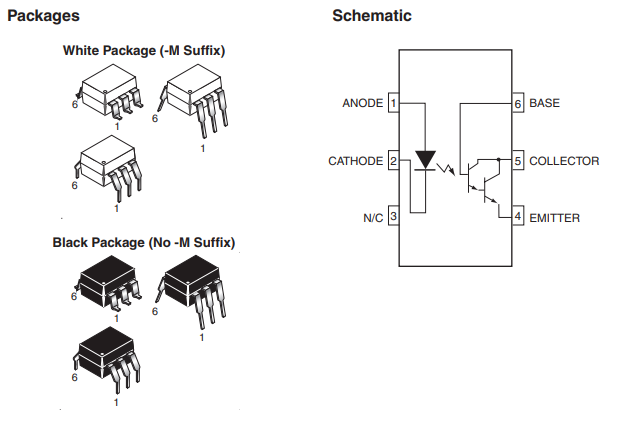

The 4N29, 4N30, 4N31, 4N32, 4N33 have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.
Features
■ High sensitivity to low input drive current
■ Meets or exceeds all JEDEC Registered Specifications
■ VDE 0884 approval available as a test option
– add option .300. (e.g., 4N29.300)
Applications
■ Low power logic circuits
■ Telecommunications equipment
■ Portable electronics
■ Solid state relays
■ Interfacing coupling systems of different potentials and impedances
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
