Description

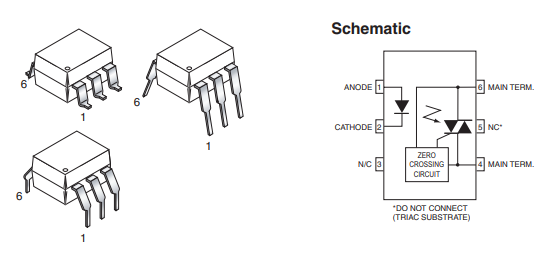

The MOC303XM and MOC304XM devices consist of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.
They are designed for use with a triac in the interface of logic systems to equipment powered from 115 VAC lines, such as teletypewriters, CRTs, solid-state relays, industrial controls, printers, motors, solenoids and consumer appliances, etc.
Features
■ Simplifies logic control of 115 VAC power
■ Zero voltage crossing
■ dv/dt of 2000 V/µs typical, 1000 V/µs guaranteed
■ VDE recognized (File # 94766), ordering option V(e.g., MOC3043VM)
Applications
■ Solenoid/valve controls
■ Lighting controls
■ Static power switches
■ AC motor drives
■ Temperature controls
■ E.M. contactors
■ AC motor starters
■ Solid state relays
