Features
■ Dual Channel Optocoupler
■ Convenient Plastic SOIC-8 Surface Mountable Package Style
■ Two channels in one compact surface mount package
■ Closely Matched Current Transfer Ratios to Minimize Unit-to-Unit Variation
■ Minimum V(BR)CEO of 70 Volts Guaranteed
■ Standard SOIC-8 Footprint, with 0.050” Lead Spacing
■ Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering
■ High Input-Output Isolation of 2500 Vac (rms) Guaranteed
■ Meets U.L. Regulatory Requirements, File #E90700, Volume 2
Applications
■ Feedback control circuits
■ Interfacing and coupling systems of different potentials and impedances
■ General purpose switching circuits
■ Monitor and detection circuits
Description

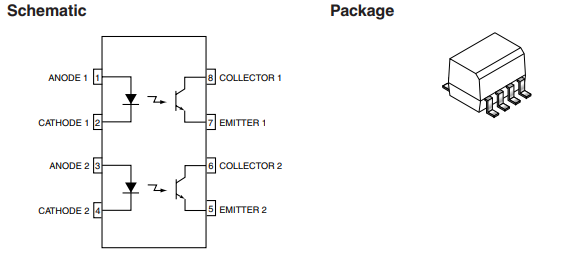

The MOCD207M/MOCD208M consist of two silicon phototransistors optically coupled to two GaAs infrared LEDs.These devices are constructed in a small outline surface mount package which conforms to the standard SOIC-8 footprint.
