DESCRIPTION
The PS2501-1, -4 and PS2501L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor.

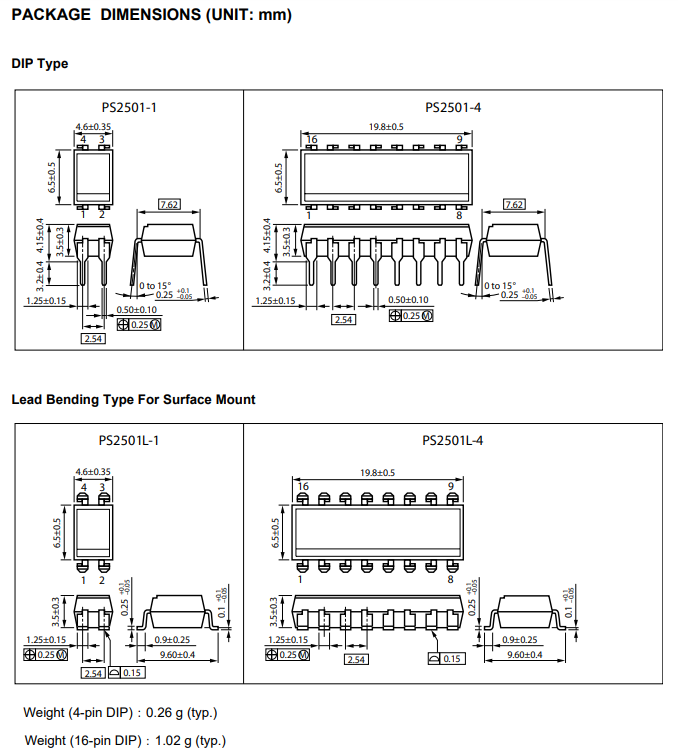

The PS2501-1, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -4 are lead bending type (Gull-wing) for surface mount.


FEATURES
 High isolation voltage (BV = 5 000 Vr.m.s.)
 High collector to emitter voltage (VCEO = 80 V)
 High-speed switching (tr = 3 μs TYP. , tf = 5 μs TYP.)
 Ordering number of taping product: PS2501L-1-F3 : 2 000 pcs/reel
 Pb-Free product
 Safety standards
 UL approved: UL1577, Double protection


APPLICATIONS
 Power supply
 Telephone/FAX.
 FA/OA equipment
 Programmable logic controller









Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
