DESCRIPTION
The PS2571-1 is optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.

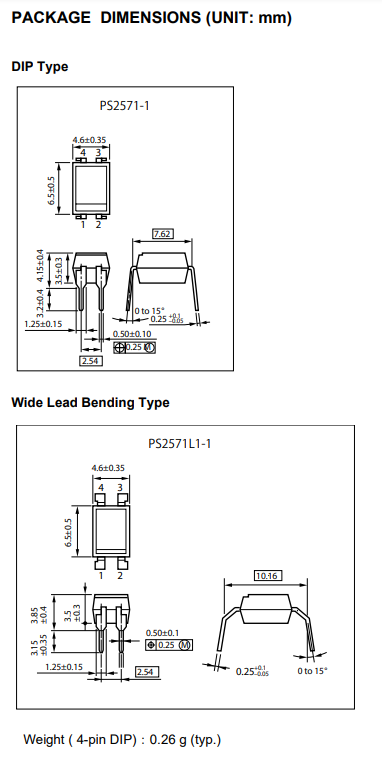

The PS2571-1 is in a plastic DIP (Dual In-line Package) and the PS2571L1-1 is wide lead bending type.
FEATURES
High isolation voltage (BV = 5 000 Vr.m.s.)
High current transfer ratio (CTR = 200% TYP.)
High-speed switching (tr = 3 μs TYP., tf = 5 μs TYP.)
Pb-Free product
Safety standards
UL approved: UL1577, Double protection
CSA approved: CAN/CSA-C22.2 No. 62368-1, Reinforced insulation
BSI approved: BS EN 62368-1, Reinforced insulation
SEMKO approved: EN 62368-1, IEC 62368-1, Reinforced insulation
NEMKO approved: EN 62368-1, Reinforced insulation
FIMKO approved: EN 62368-1, Reinforced insulation
DEMKO approved: EN 62368-1, Reinforced insulation
VDE approved: DIN EN 60747-5-5 (Option)
APPLICATIONS
Power supply
Telephone/FAX.
FA/OA equipment
Programmable logic controllers
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
