Isolated Line Receiver
Simplex / Multiplex Data Transmission
Computer−Peripheral Interface
Microprocessor System Interface
Digital Isolation For A / D, D / A Conversion

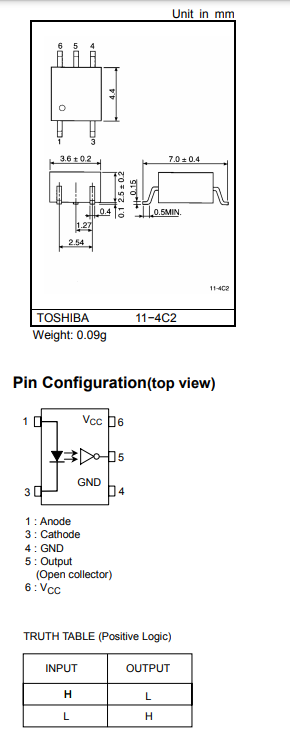

The TOSHIBA mini flat coupler TLP113 is a small outline coupler,suitable for surface mount assembly.

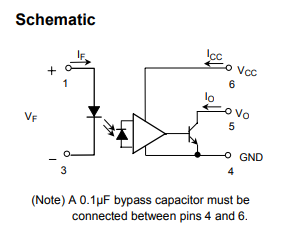

TLP113 consists of a GaAℓAs light emitting diode, optically coupled to an integrated high gain, high speed photodetector whose output is an open collector, schottky clamped transistor.
● Input current thresholds: IF=10mA(max.)
● Switching speed: 10MBd(typ.)
● TTL / LSTTL compatible: VCC=5V
● Guaranteed performance over temp.: 0~70°C
● Isolation voltage: 2500Vrms(min.)
● UL recognized: UL1577 file no. E67349
