PDP (Plasma Display Panel)
FA (Factory Automation)
High-Speed Interface
The Toshiba TLP117 consists of a GaAℓAs light-emitting diode and an integrated high-gain, high-speed photodetector.

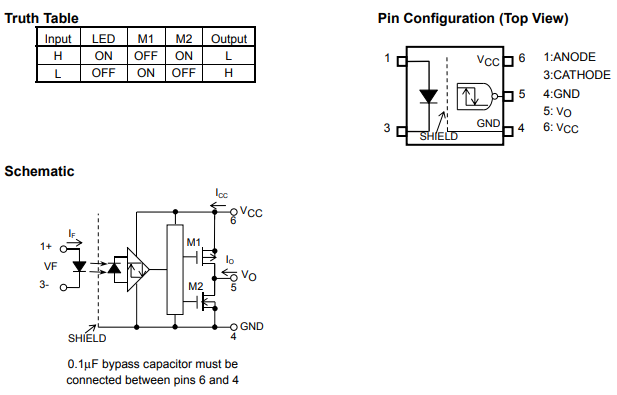

Inverter logic (totempole output)
Package type : MFSOP6
Guaranteed performance over temperature : -40 to 105°C
Power supply voltage : 4.5 to 5.5 V
Input thresholds current : IFHL=5 mA (max)
Propagation delay time (tpHL/tpLH) : 30 ns (max) at VL=0 V
20 ns (Max) at VL=1.1 V
Switching speed : 50 MBd (typ.)
Common mode transient immunity : 10 kV/μs (min)
Isolation voltage : 3750 Vrms
UL Recognized : UL1577, File No.E67349
c-UL Recognized: CSA Component Acceptance Service No. 5A, File No.E67349
