Transistor Inverter
Inverter For Air Conditioner
IGBT Gate Drive
Power MOS FET Gate Drive
The TOSHIBA TLP250 consists of a GaAlAs light emitting diode and a integrated photodetector.

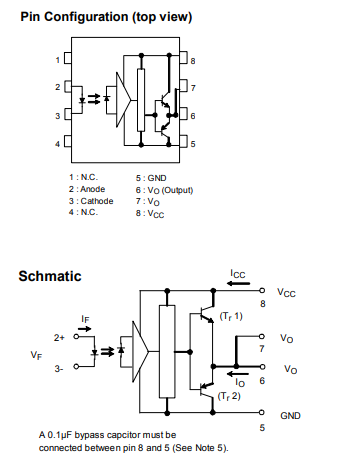

This unit is 8−lead DIP package.
TLP250 is suitable for gate driving circuit of IGBT or power MOS FET.
• Input threshold current: IF=5mA(max.)
• Supply current (ICC): 11mA(max.)
• Supply voltage (VCC): 10−35V
• Output current (IO): ±1.5A (max.)
• Switching time (tpLH/tpHL): 0.5μs(max.)
• Isolation voltage: 2500Vrms(min.)
• UL recognized: UL1577, file No.E67349
• Option(D4)
VDE Approved : DIN EN60747-5-2
Maximum Operating Insulation Voltage : 890VPK
Highest Permissible Over Voltage : 4000VPK
