Description

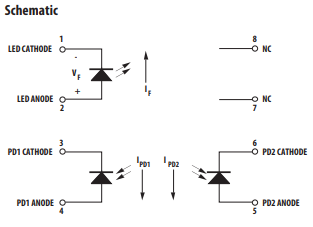

The HCNR200/201 high-linearity analog optocoupler consists of a high-performance AlGaAs LED that illuminates two closely matched photodiodes.
The input photodiode can be used to monitor, and therefore stabilize, the light output of the LED. As a result, the non-linearity and drift characteristics of the LED can be virtually eliminated. The output photodiode produces a photocur rent that is linearly related to the light output of the LED. The close matching of the photo-diodes and advanced design of the package ensure the high linearity and stable gain characteristics of the opto coupler.
The HCNR200/201 can be used to isolate analog signals in a wide variety of applications that require good stability, linearity, bandwidth and low cost. The HCNR200/201 is very fl exible and, by appro priate design of the application circuit, is capable of operating in many diff erent modes, includ ing: unipolar/bipolar, ac/dc and inverting/non-inverting. The HCNR200/201 is an excellent solution for many analog isola tion problems.
Features
Low nonlinearity: 0.01%
K3
(IPD2/IPD1) transfer gain
HCNR200: ±15%
HCNR201: ±5%
Low gain temperature coeffi cient: -65 ppm/°C
Wide bandwidth – DC to >1 MHz
Worldwide safety approval
– UL 1577 recognized (5 kV rms/1 min rating)
– CSA approved
– IEC/EN/DIN EN 60747-5-2 approved VIORM = 1414 V peak (option #050)
Surface mount option available (Option #300)
8-Pin DIP package - 0.400” spacing
Allows fl exible circuit design
Applications
Low cost analog isolation
Telecom: Modem, PBX
Industrial process control:
Transducer isolator
Isolator for thermo couples 4 mA to 20 mA loop isolation
SMPS feedback loop, SMPS feedforward
Monitor motor supply voltage
Medical
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
