Description
Avago’s 2.5 Amp Gate Drive Optocoupler with Integrated Desaturation (VCE) Detection and Fault Status Feedback makes IGBT VCE fault protection compact, affordable, and easy-to-implement while satisfying worldwide safety and regulatory requirements.

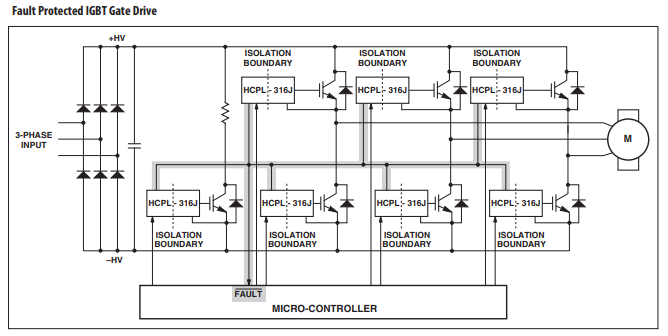

Features
• 2.5 A maximum peak output current
• Drive IGBTs up to IC = 150A, VCE = 1200V
• Optically isolated, FAULT status feedback
• SO-16 package
• CMOS/TTL compatible
• 500 ns max. switching speeds
Features (continued)
• “Soft” IGBT turn-off
• Integrated fail-safe IGBT protection
– Desat (VCE) detection
– Under Voltage Lock-Out protection (UVLO) with hysteresis
• User configurable: inverting, noninverting, auto-reset,auto-shutdown
• Wide operating VCC range: 15 to 30 Volts
• -40°C to +100°C operating temperature range
• 15 kV/µs min. Common Mode Rejection (CMR) at VCM=1500V
• Regulatory approvals: UL, CSA, IEC/EN/DIN EN 60747-5-2 (891Vpeak Working Voltage)
