Description

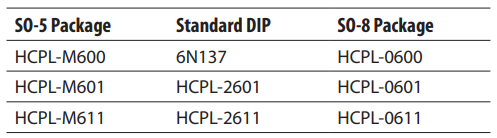

These small outline high CMR, high speed, logic gate opto coup lers are single channel devices in a five lead miniature foot print. They are electrically equivalent to the following Avago optocouplers (except there is no output enable feature):
The SO-5 JEDEC registered (MO-155) package outline does not require “through holes” in a PCB. This package occupies approximately one fourth the footprint area of the standard dual-in-line package. The lead profile is designed to be com patible with standard surface mount processes.
The HCPL-M600/01/11 optically coupled gates combine a GaAsP light emitting diode and an integrated high gain photon detector. The output of the detector I.C. is an Open-collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode
transient immunity specification of 5,000 V/μs for the HCPL-M601, and 10,000 V/μs for the HCPL-M611. This unique design provides maximum ac and dc circuit isolation while achieving TTL compatibility. The optocoupler ac and dc operational param eters are guaranteed from –40°C to 85°C allowing trouble free system performance.
Features
● Surface Mountable
● Very Small, Low Profile JEDEC Registered Package Outline
● Compatible with Infrared Vapor Phase Reflow and Wave Soldering Processes
● Internal Shield for High Common Mode Rejection (CMR)
HCPL-M601: 10,000 V/μs at VCM = 50 V
HCPL-M611: 15,000 V/μs at VCM = 1000 V
● High Speed: 10 Mbd
● LSTTL/TTL Compatible
● Low Input Current Capability: 5 mA
● Guaranteed ac and dc Performance over Temperature:–40°C to 85°C
● Safety and regulatory approvals:
- UL recognized: 3750 Vac for 1 min. per U.L.(File No. 55361)
- CSA component acceptance Notice #5
- IEC/EN/DIN EN 60747-5-2 approved for HCPL-M601/M611 Option 060.
● Lead Free Option
Applications
● Isolated Line Receiver
● Simplex/Multiplex Data Transmission
● Computer-Peripheral Interface
● Microprocessor System Interface
● Digital Isolation for A/D, D/A Conversion
● Switching Power Supply
● Instrument Input/Output Isolation
● Ground Loop Elimination
● Pulse Transformer Replacement
