Description

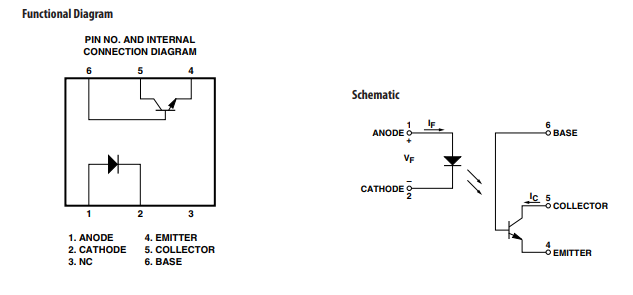

The CNY17 contains a light emitting diode optically coupled to a photo-transistor. It is packaged in a 6-pin DIP package and available in wide-lead spacing option and lead bend SMD option. Collector-emitter voltage is above 70 V. Response time, tr, is typically 5 µs and minimum CTR is 40% at input current of 10 mA.
Applications
• System appliances, measuring instruments
• Signal transmission between circuits of different potentials and impedances
• Feedback circuit in power supply
Features
• High collector-emitter voltage (VCEO = 70 V)
• High input-output isolation voltage (Viso = 5000 Vrms)
• Current Transfer Ratio (CTR: min. 40% at IF = 10 mA, VCE = 5 V)
• Response time (tr: typ., 5 µs at VCC = 10 V, IC = 2 mA, RL = 100 Ω)
• Dual-in-line package
• UL approved
• CSA approved
• IEC/EN/DIN EN 60747-5-2 approved
• Options available:
– Leads with 0.4" (10.16 mm) spacing (W00)
– Leads bend for surface mounting (300)
– Tape and reel for SMD (500)
– IEC/EN/DIN EN 60747-5-2 approvals (060)
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
