1.Features
(1)High speed 10Mbit/s
(2)10kV/ps min. common mode transient immunity (FT-88-2611)
(3)Guaranteed performance from -40 to 85°C
(4)Logic gate output
(5)High isolation voltage between input and output (Viso=5000 V rms)
(6)In compliance with RoHS, REACH standards
(7)MSL Class Ⅰ
2.Instructions

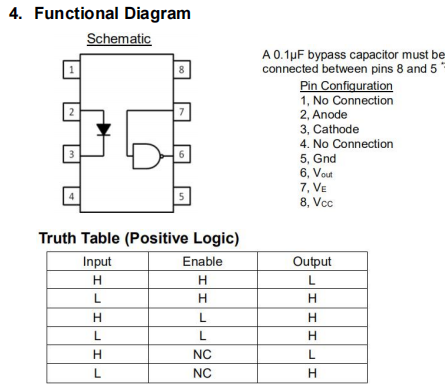

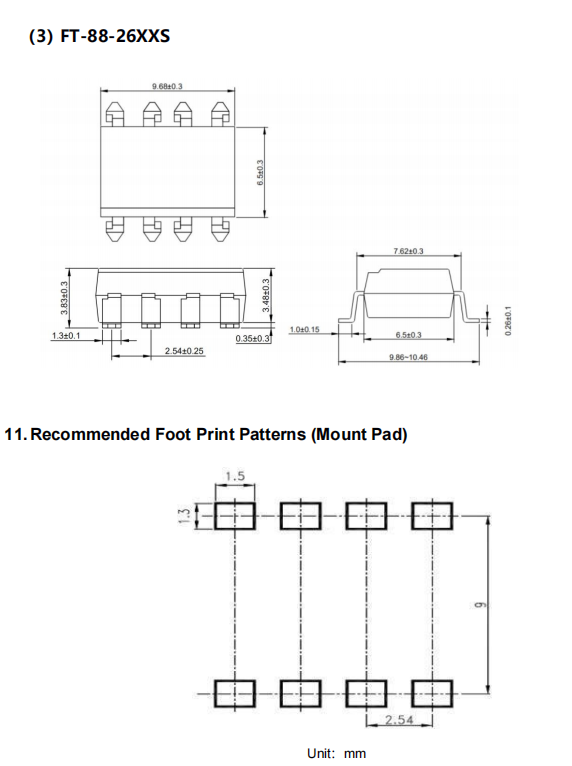

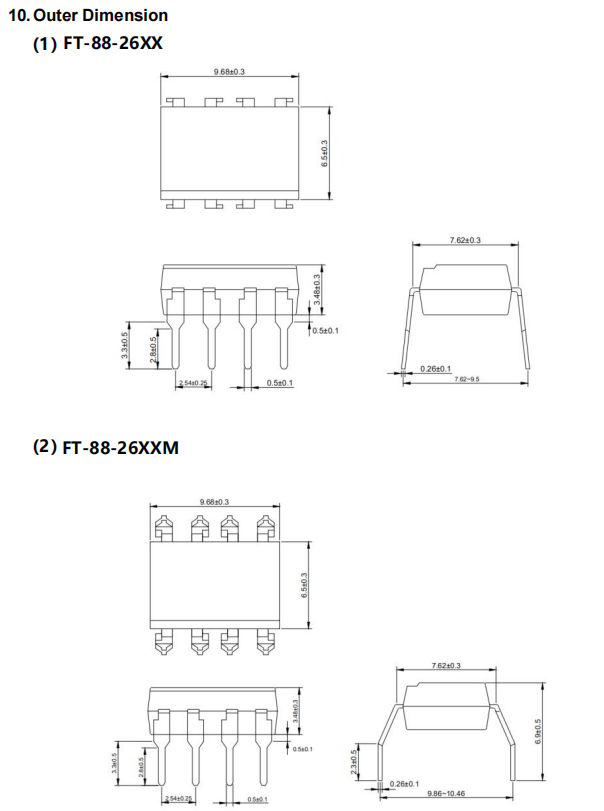

The FT-88-2601 and FT-88-261 are consists of an infrared emitting diode optically coupled to a high speed integrated photo detector logic gate with a strobable output. It is packaged in a 8-pin DIP package and available in wide-lead spacing and SMD options.
3.Application Range
(1)Ground loop elimination
(2)Line receiver, data transmission
(3)Switching power supplies Pulse
(4)Computer peripheral interface
(5)LSTTL to TTL, LSTTL or 5 volt CMOS
(6)Data multiplexing
(7)transformer replacement
(8)High speed logic ground isolation
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
