1.Features
(1)high speed: 10Mbit/s

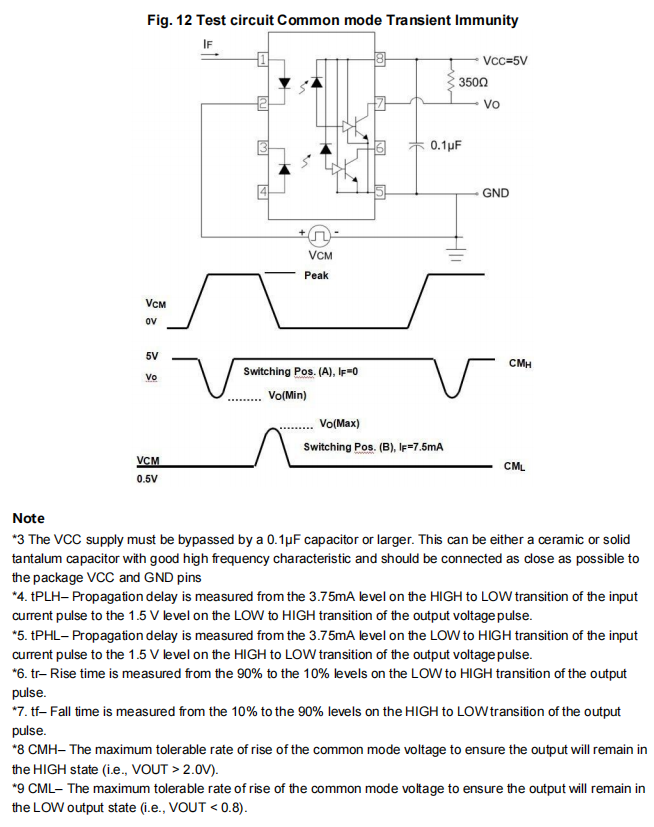

(2)10kV/μs min. common mode transient immunity ( ) 5kV/μs min.common mode transient immunity (FT-88-2630 )
(3)Logic gate output
(4)Guaranteed performance from -40 to 100℃
(5)High isolation voltage between input and output (Viso=5000 Vrms )
(6)In compliance with RoHS, REACH standards
(7)MSL Class Ⅰ
2.Instructions

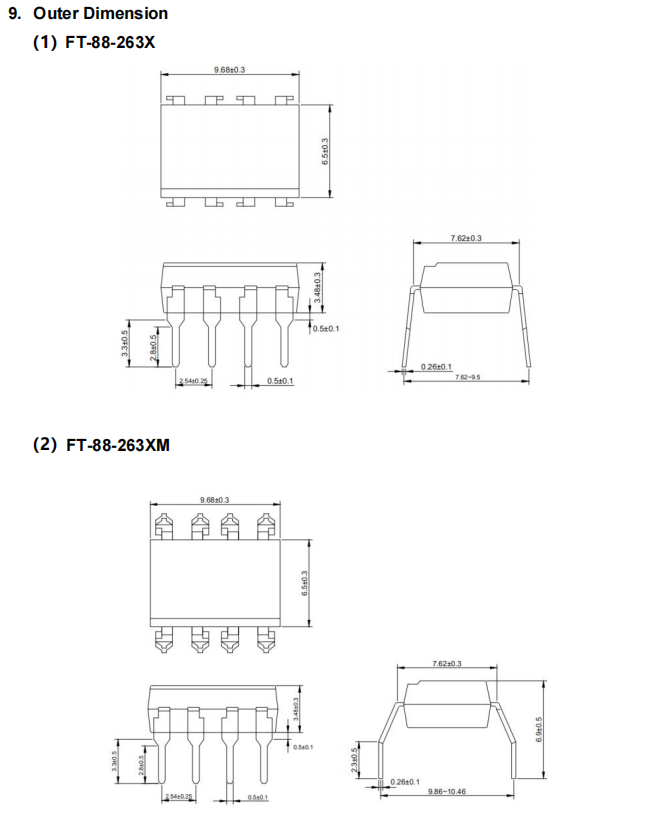

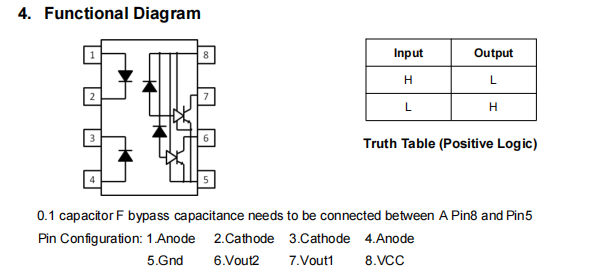

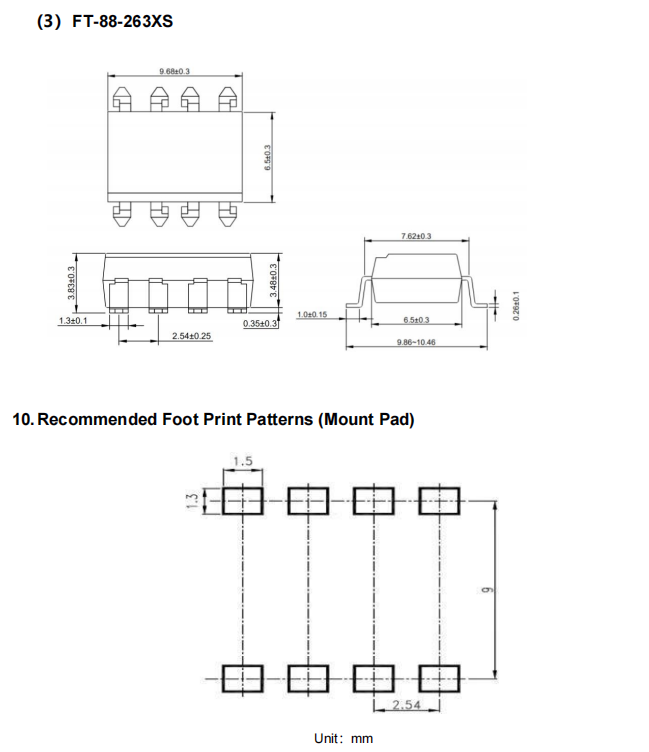

The FT-88-2630 and FT-88-263 are consists of an infrared emitting diode optically coupled to a high speed integrated photo detector logic gate with a strobable output. It is packaged in a 8-pin DIP package and available in wide-lead spacing and SMD options.
3.Application Range
- Ground loop elimination
- LSTTL to TTL, LSTTL or 5 volt CMOS
- Line receiver, data transmission
- Data multiplexing
- Switching power supplies
- Pulse transformer replacement
- Computer peripheral interface
- High speed logic ground isolation
