1.Features
(1).High speed - 1MBd model
(2).Adapted to the dual-in-line, lead spacing width, surface installation.
(3).Store output.
(4).UL, VDE approval.
(5).In compliance with RoHS, REACH standards
(6).MSL Class Ⅰ
2.Instructions
FT-88-6N135/6N136/450X consists of highly efficientAlGaAs light-emittingdiodesandhigh-speedopticaldetectors.The design provides good ac and dc isolation at the input and output ends of the photoelectric coupler. Connections related to photo diodebiasing canimprovethespeedofconventional photo transistorcouplersby reducingthecapacitanceof the matrix collector. Internal shielding ensures high transient immunity in general mode. Ensure the common- mode transient immunity to 1 kv/μsec.

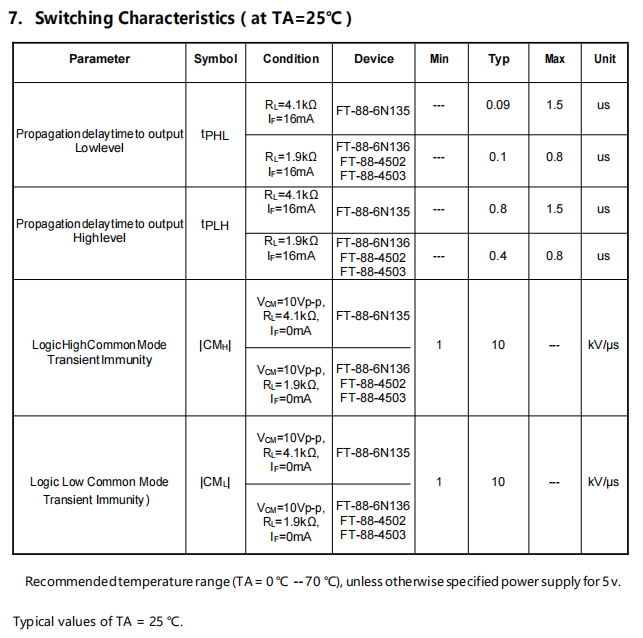

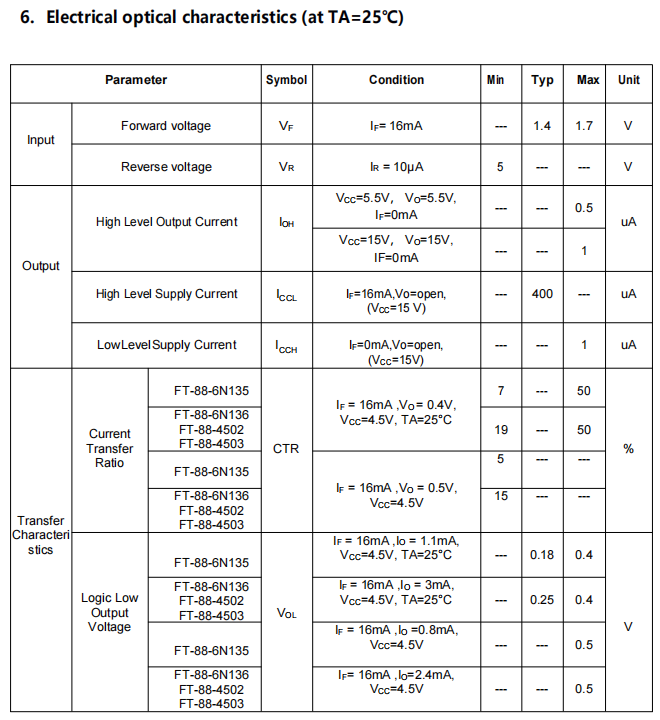

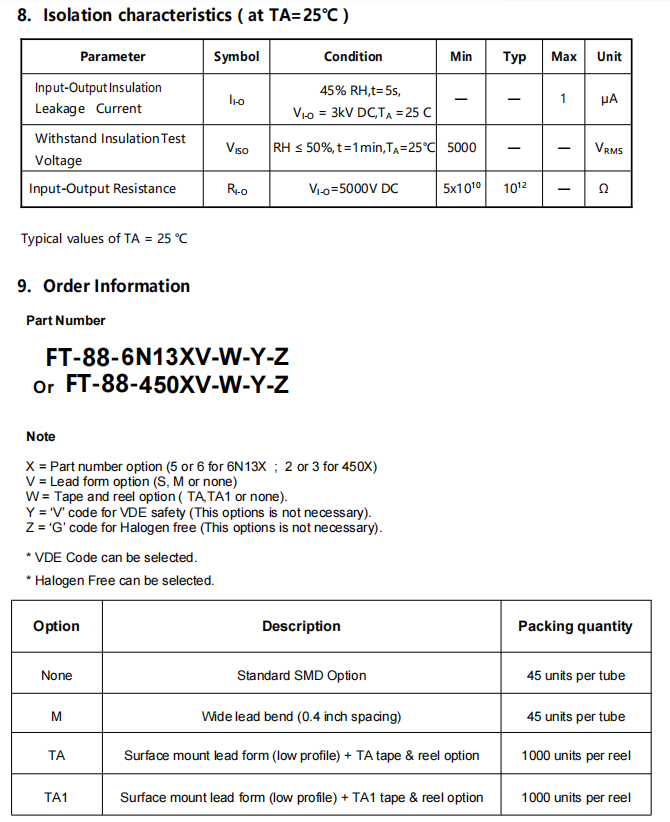

3.Application Range
line receiver isolation
A/ D, D/A converted digital signal isolation
eliminate noise from the groundloop
switching power supply
alternative pulse transformers
motor control system
interface of microprocessor system, computer and peripheral equipment

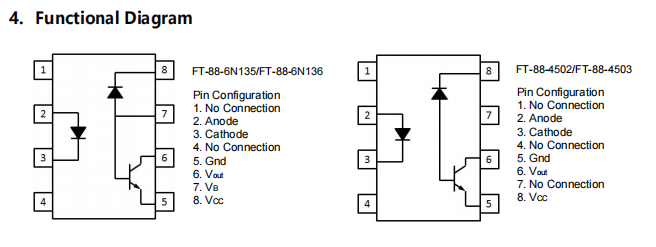

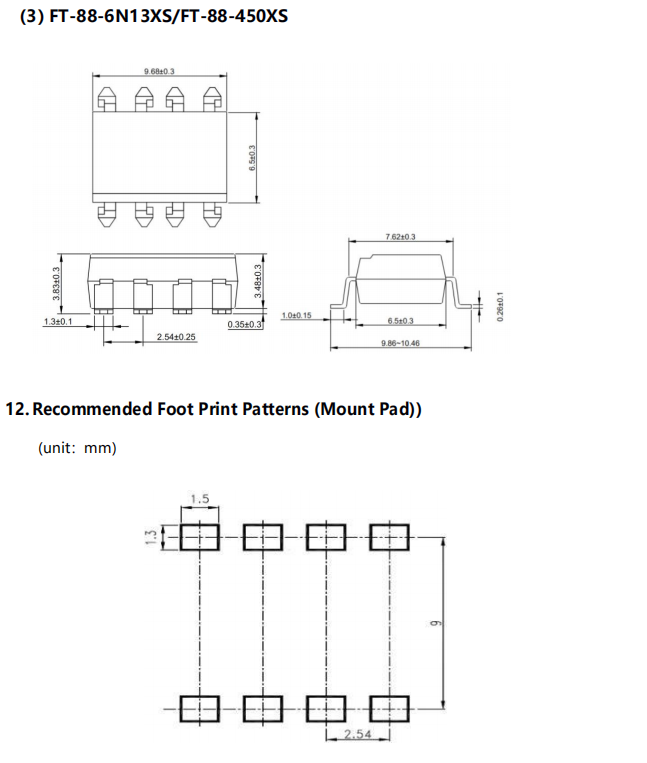

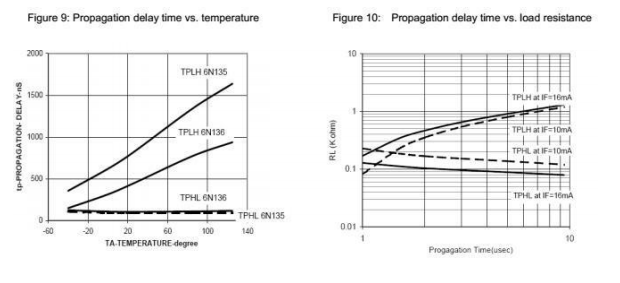

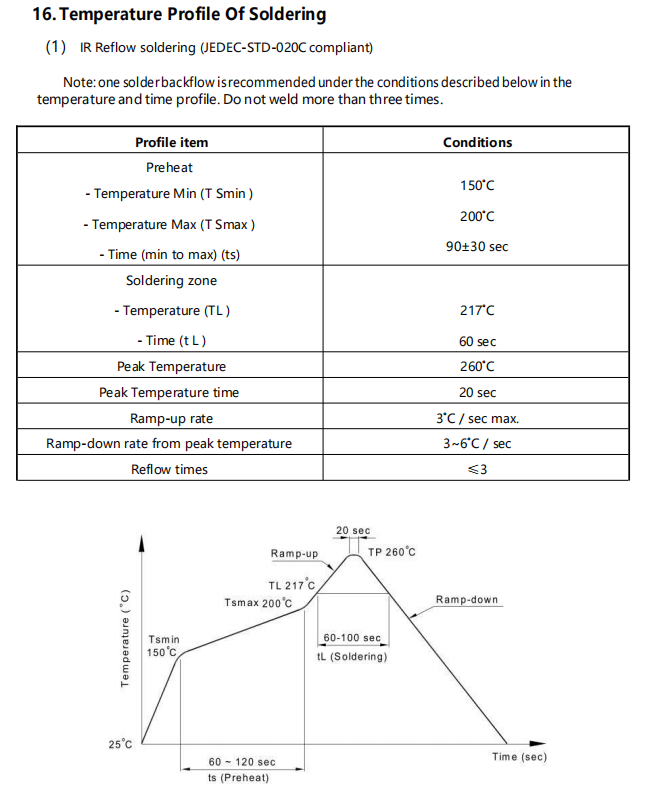

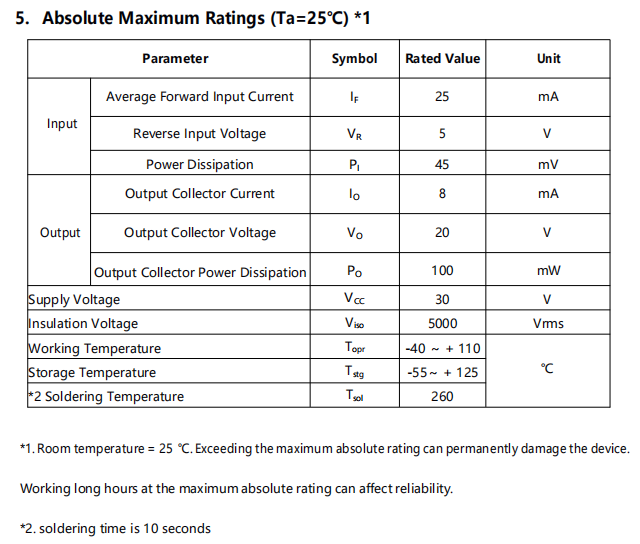

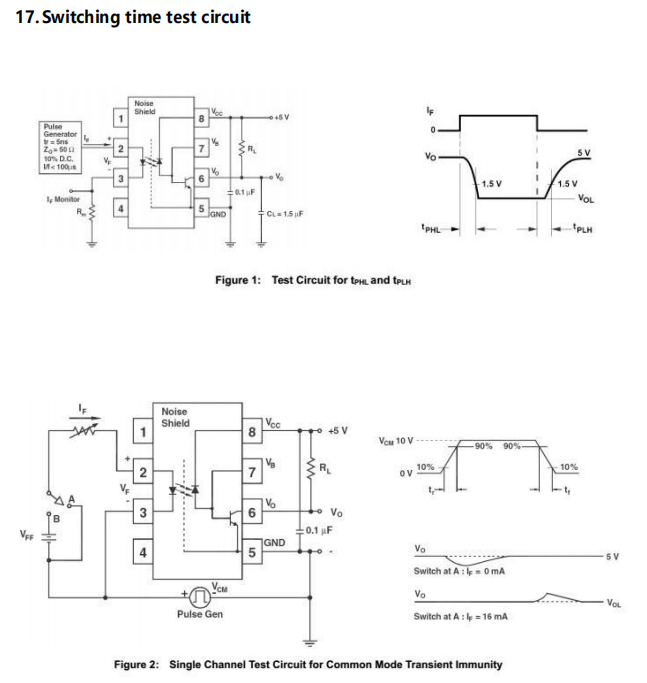

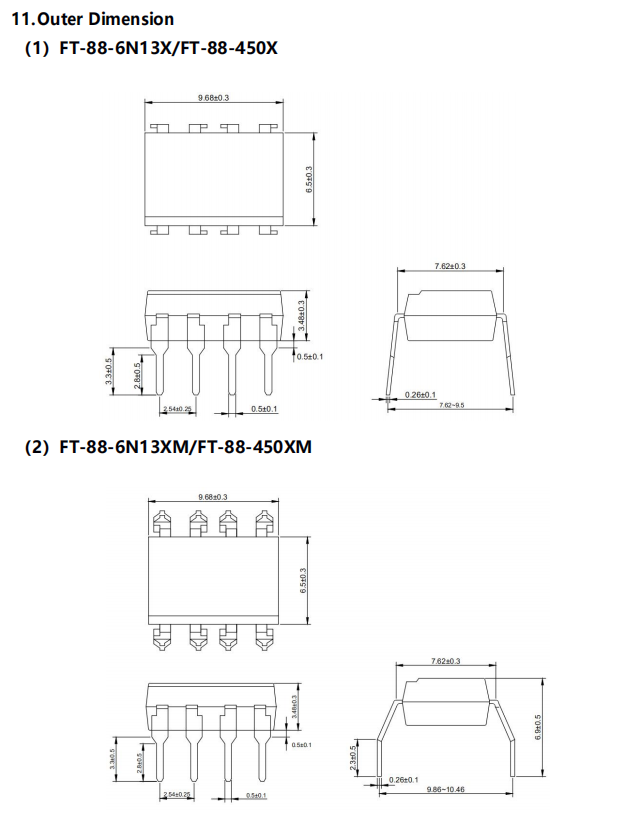

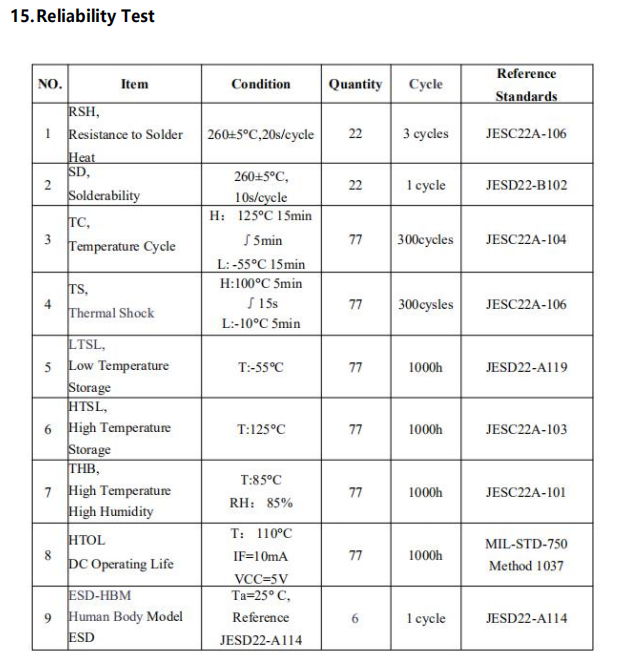

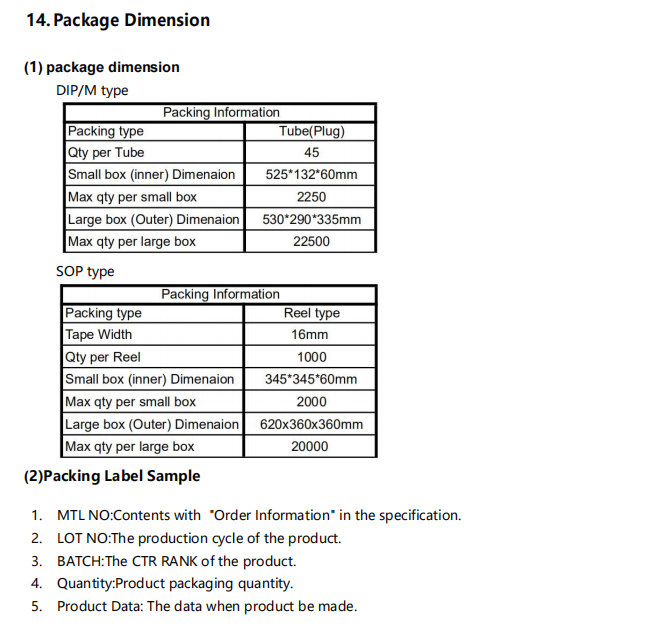

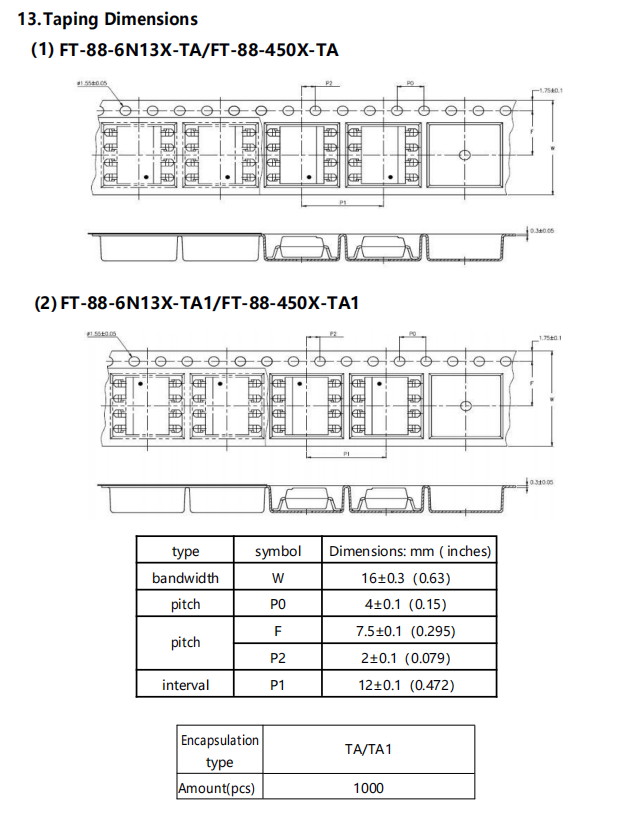

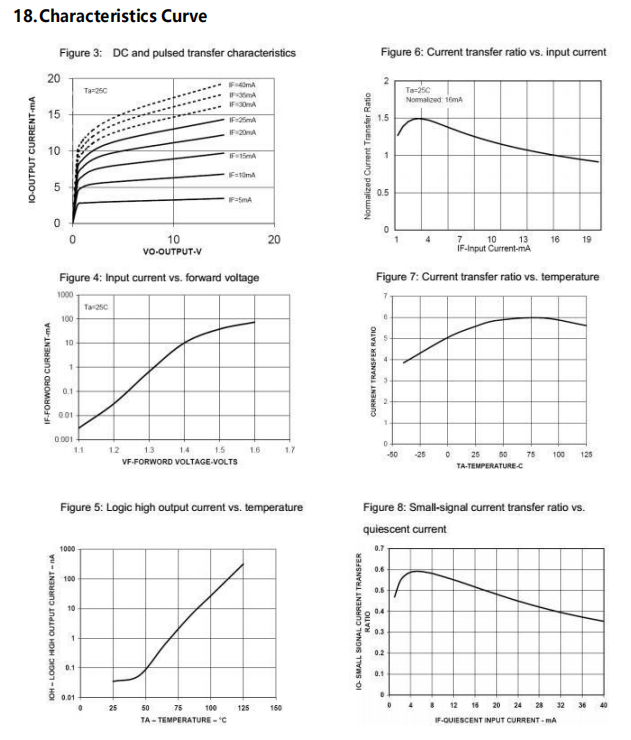

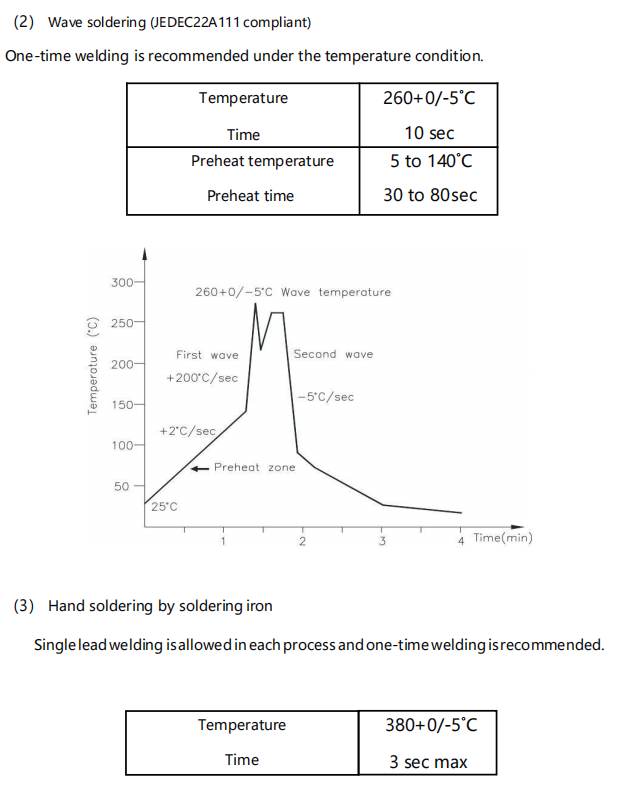

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
