1.Features

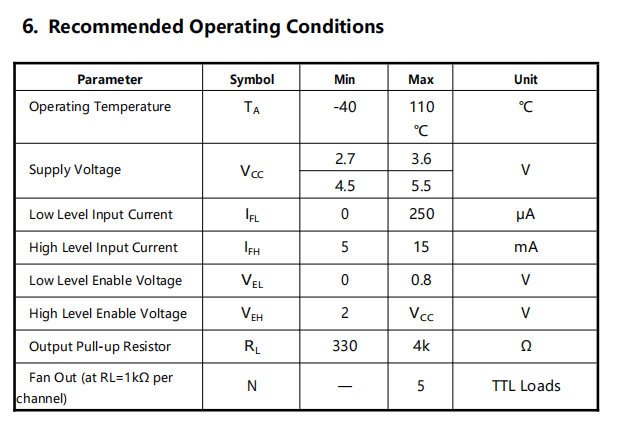

(1)3.3v / 5V supply voltage
(2)low power consumption

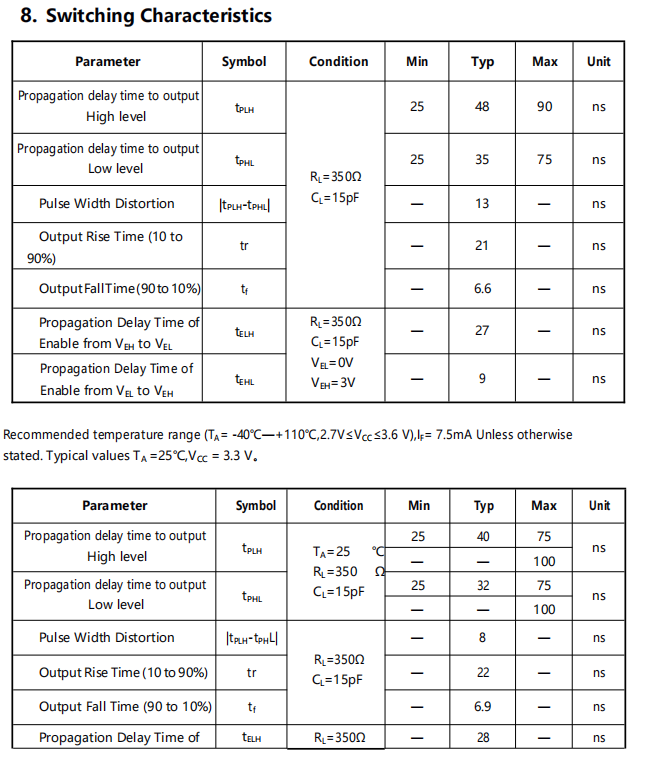

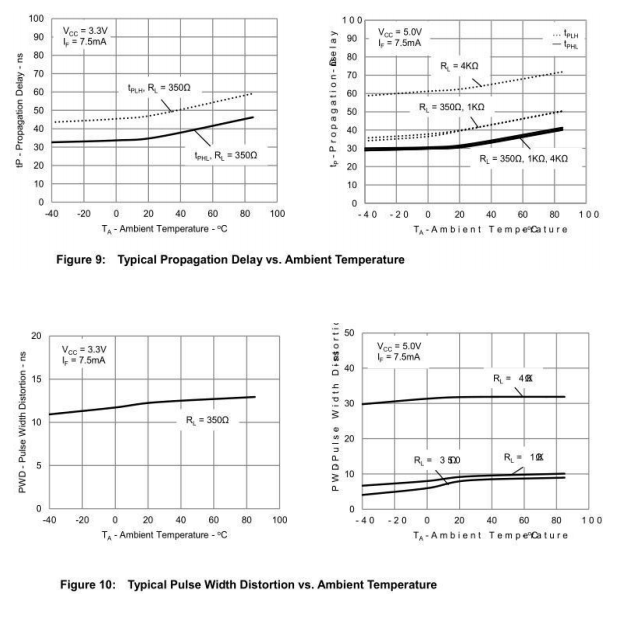

(3)high speed: 15MBd(typical)

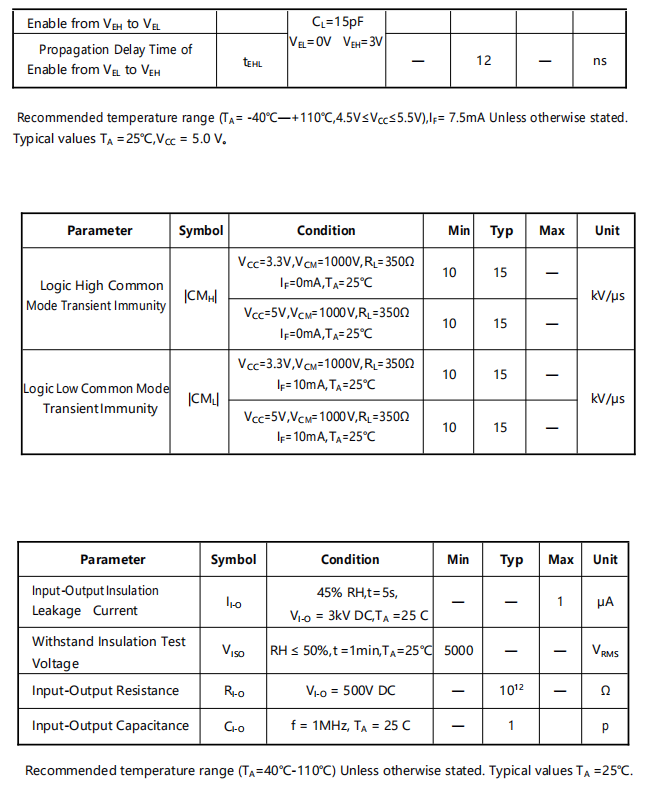

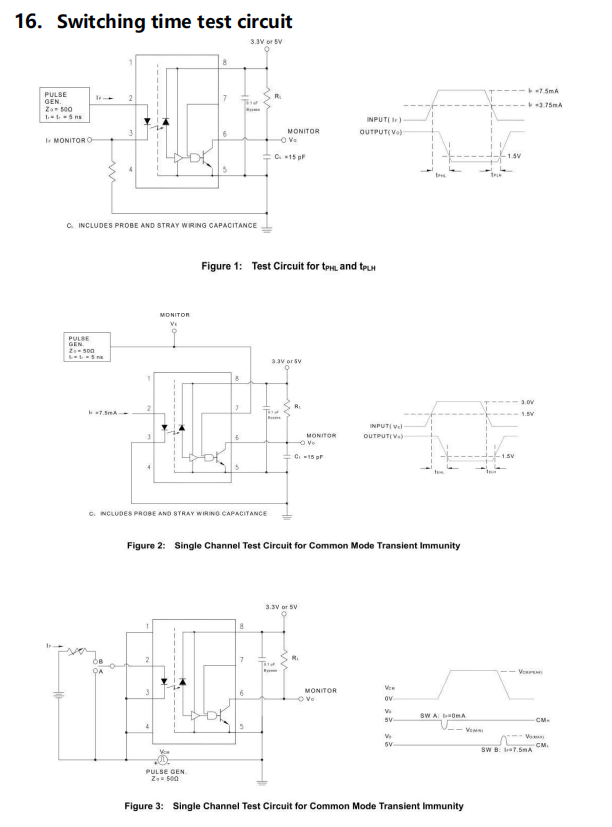

(4)VCM=1000V,andthe lowest commonmode inhibition(CMR) is 10 kv/μs.

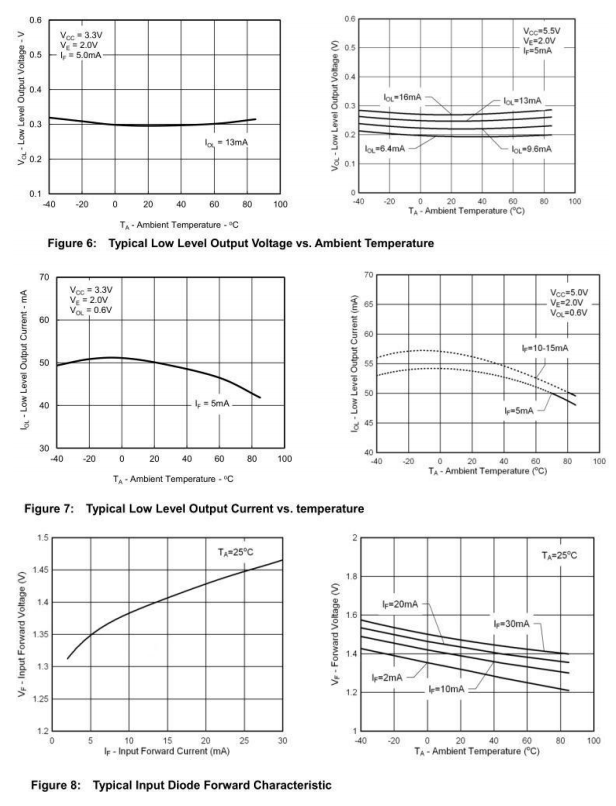

(5)when - 40 ℃ ~ + 110 ℃ temperature of ac and dc performance.

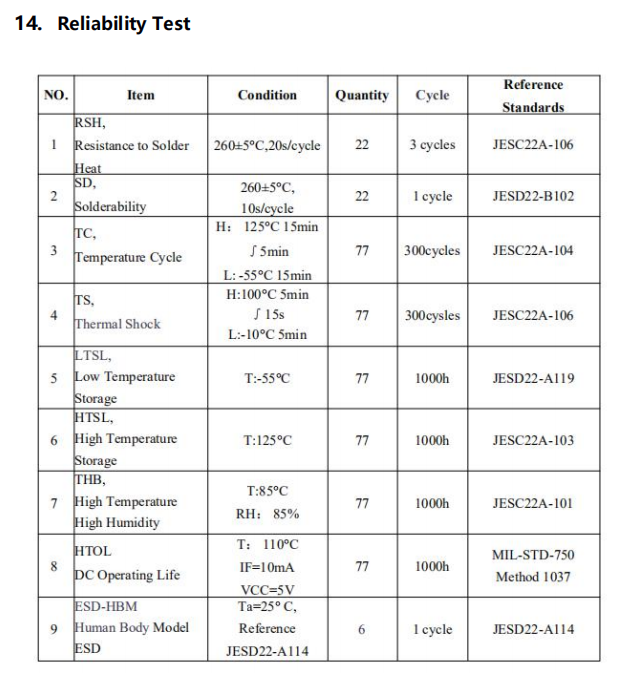

(6)MSL Class Ⅰ

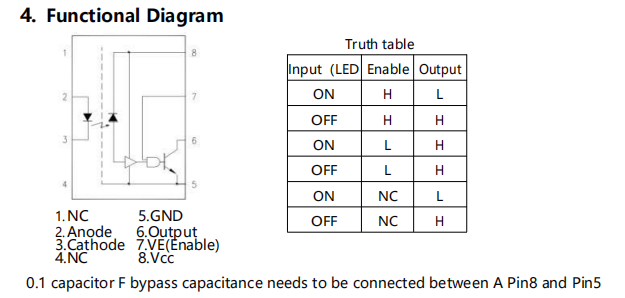

2.Instructions

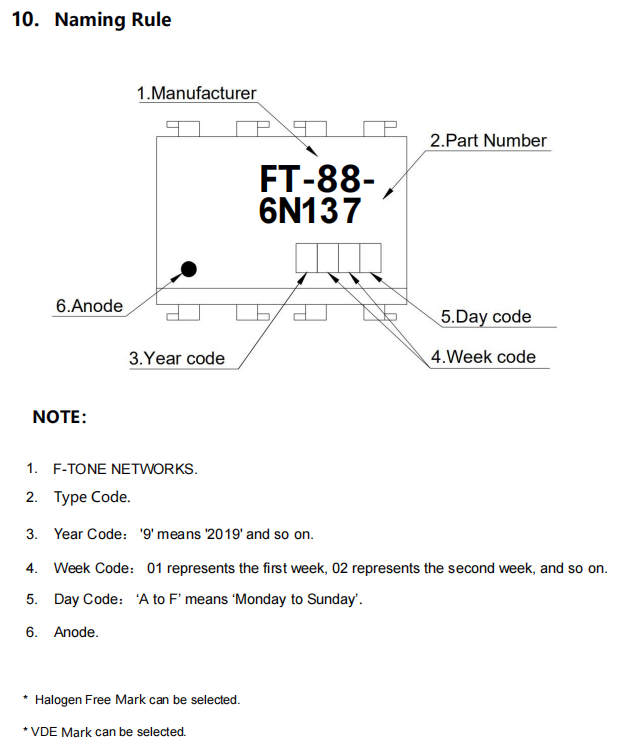

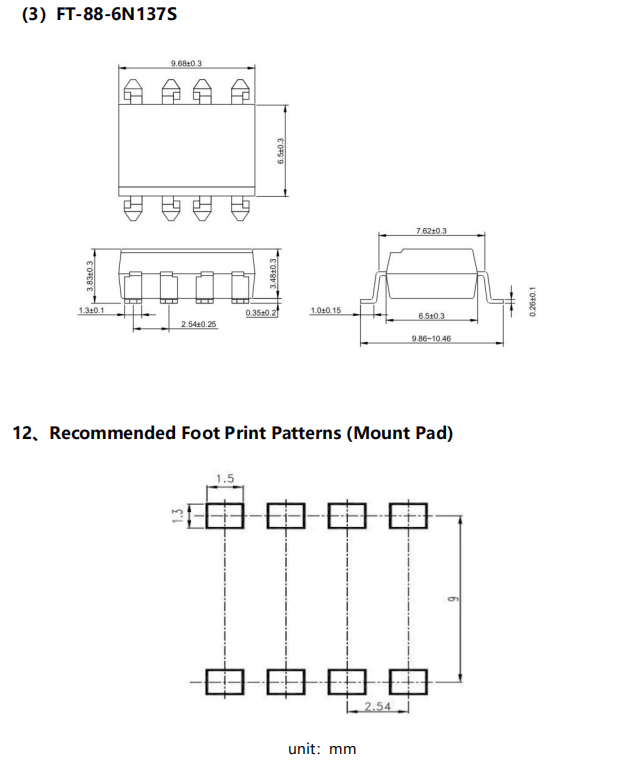

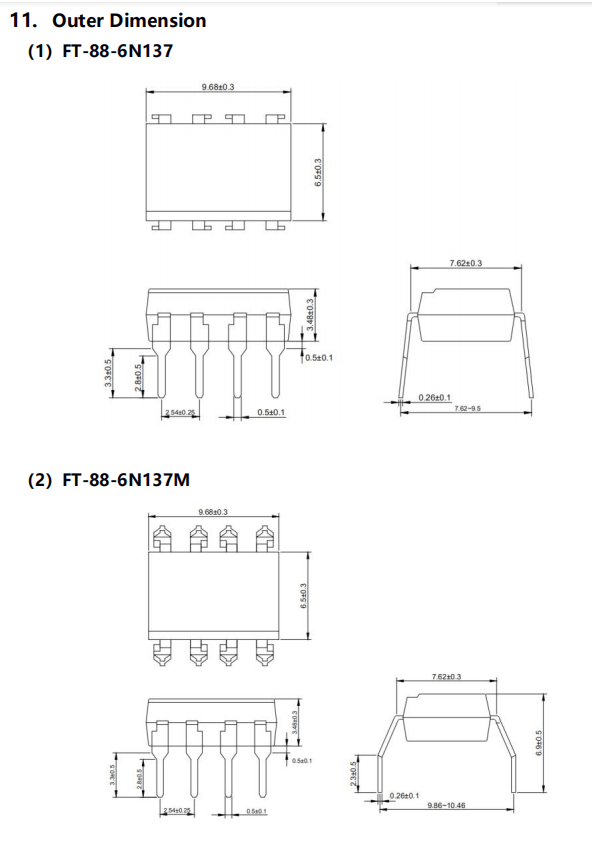

FT-88-6N137 is made up of an efficient AlGaAs light-emitting diode andhigh-speed optical detector.This design provides good ac and dc isolation between the input and output ends of the photo electric coupler. The output characteristic of the photo detector is a collector open circuit schottky clamp transistor. The total mode transient immunity should reach 10 kv/pa at 3.3 v. The photo electric coupler operating temperature range: - 40 ℃ ~ +110 ℃.
3.Application Range
line receiver isolation
A/ D, D/A converted digital signal isolation
eliminate noise from the groundloop
switching power supply
alternative pulse transformers
motor control system
interface of microprocessor system, computer and peripheral equipment
