1.Features
High current transfer ratio – 2000%typical.
Low input current requirements – 0.5mA
High output current – 60mA
CTR guarantee – 0~70℃.
Instantaneous common mode rejection10KV/μsec
MSL Class Ⅰ
2.Instructions

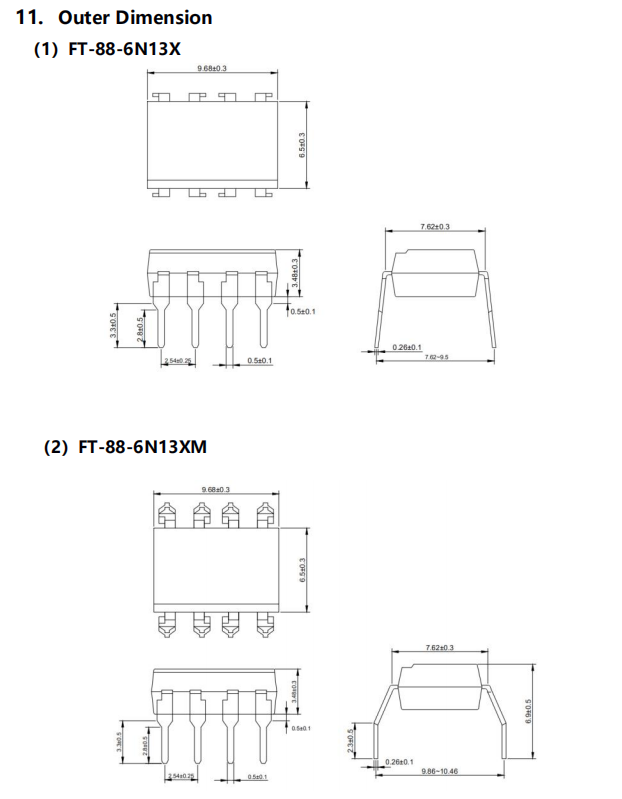

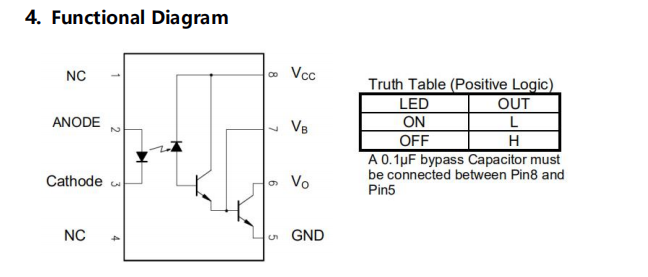

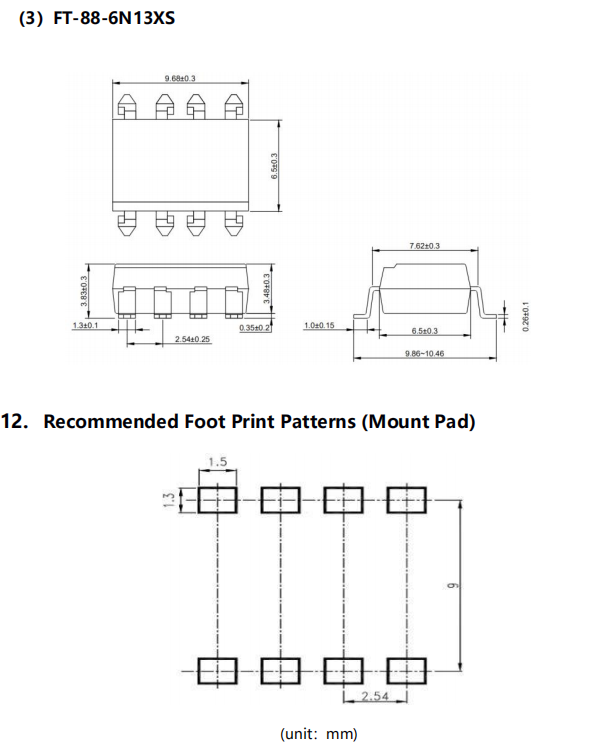

The FT-88-6N138/6N139 devices each consists of an infrared emitting diode, optically coupled to a high gain split Darlington photo detector. They provide extremely high current transfer ratio between input and output, with access to a base terminal to adjust the gain bandwidth.These devices are packaged in an 8-pin DIP package and available in wide-lead spacing and SMD options.
3.Application Range
Digital logic ground isolation
Low input current line receiver
Telephone ring detector
EIA-RS-232C line receiver
Current loop receiver
High common mode noise line receiver
